Compare the class

See how the Aurum compares.

Manufacturer-published figures, researched 2026-09-29. Aurum prototype figures are labeled. Hover any value for its source.

Choose models to compareAurum + 4 selected

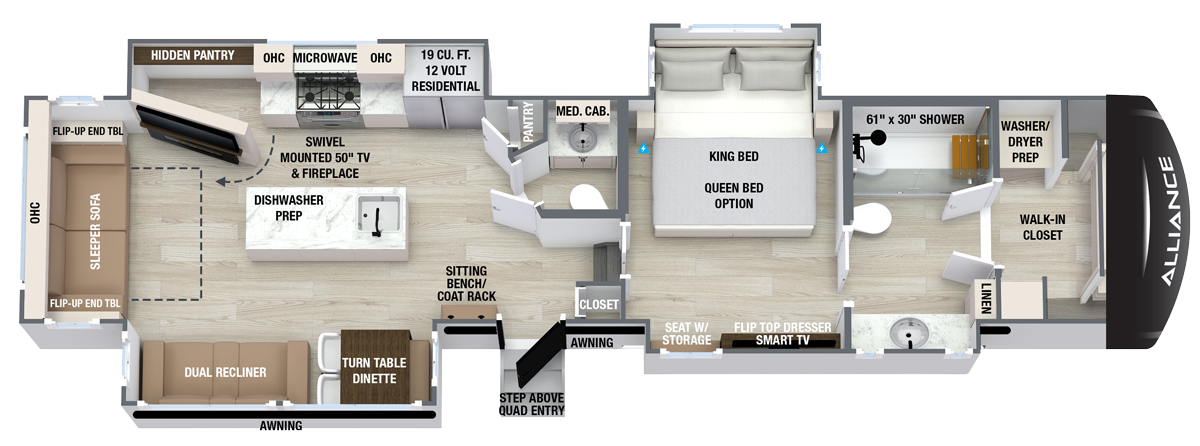

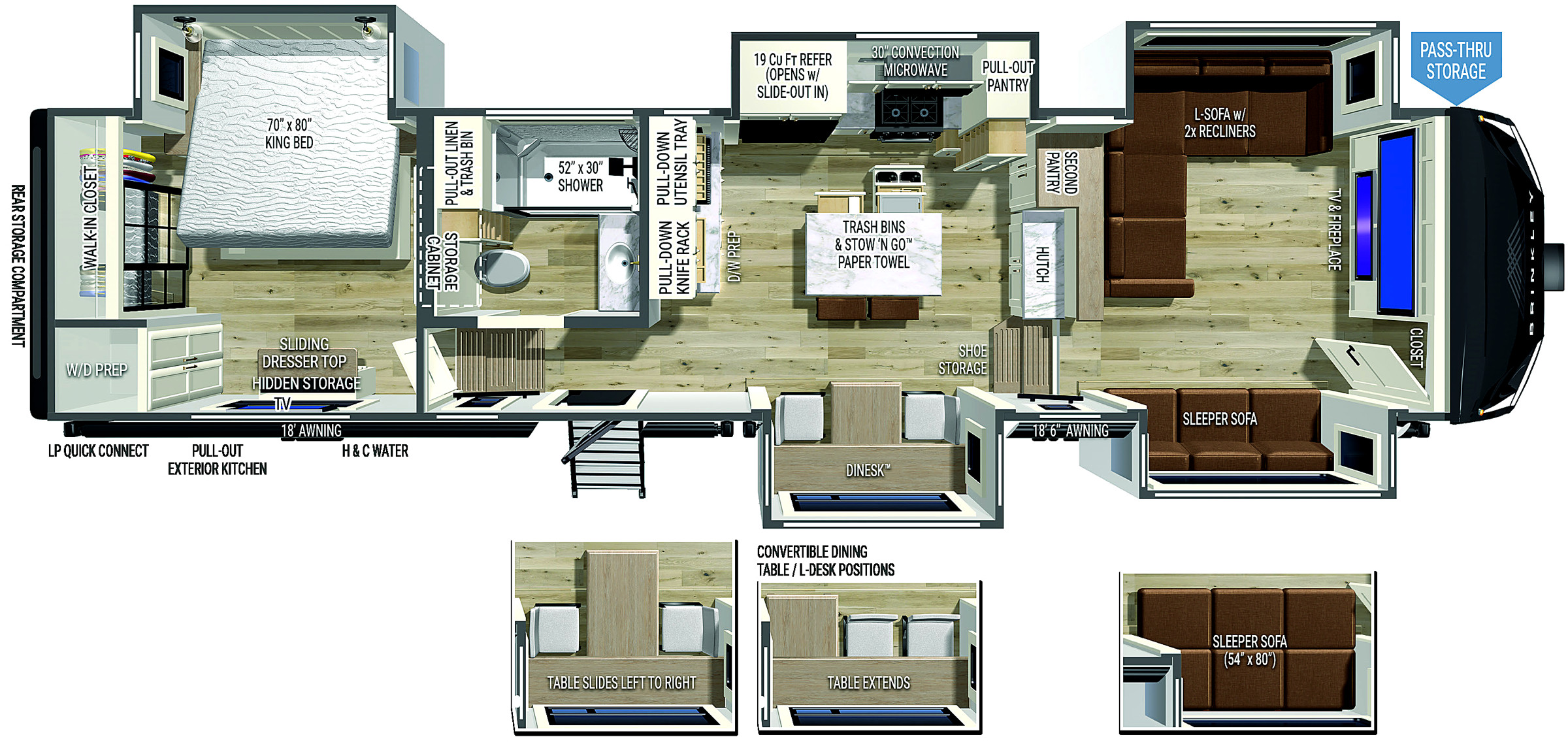

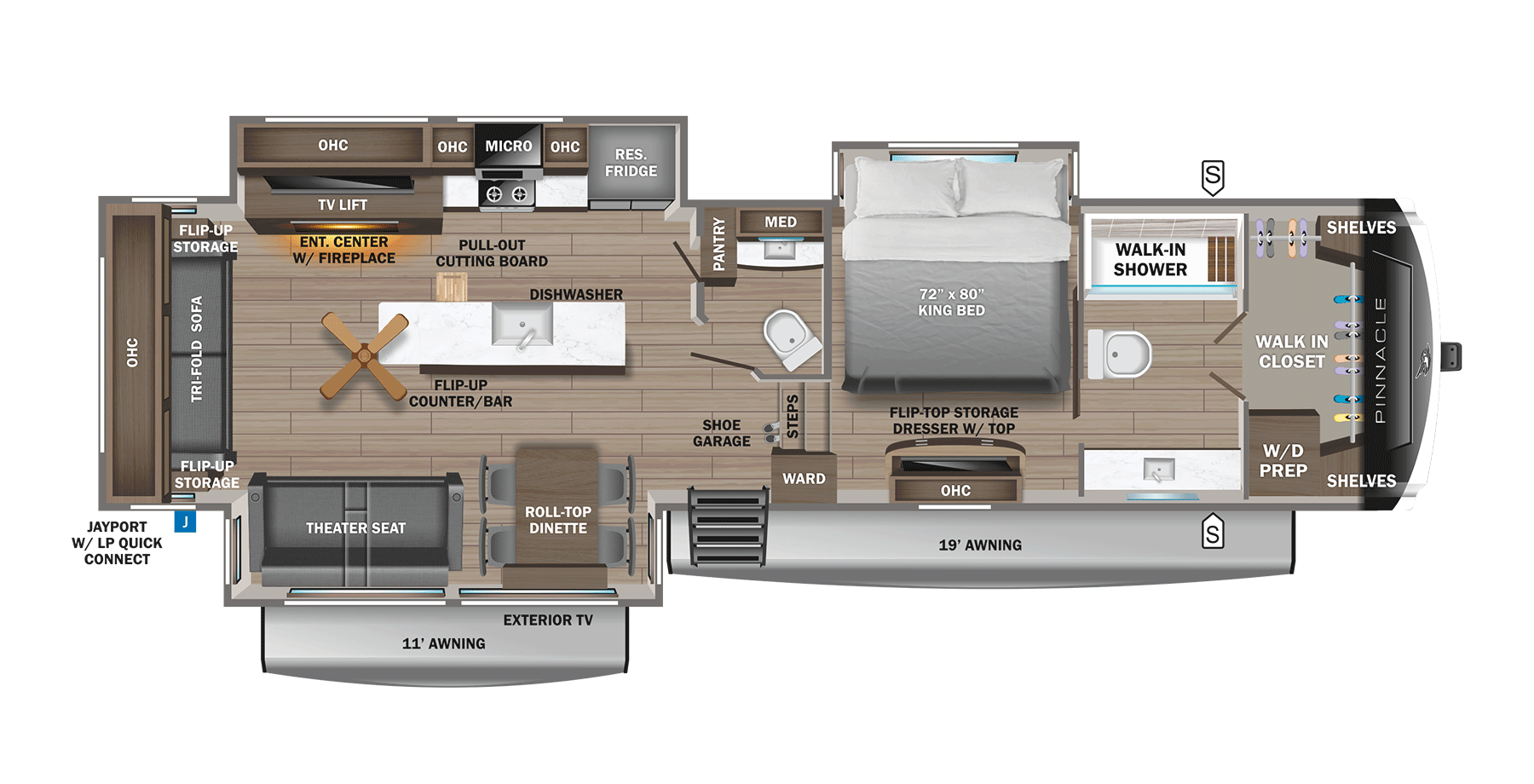

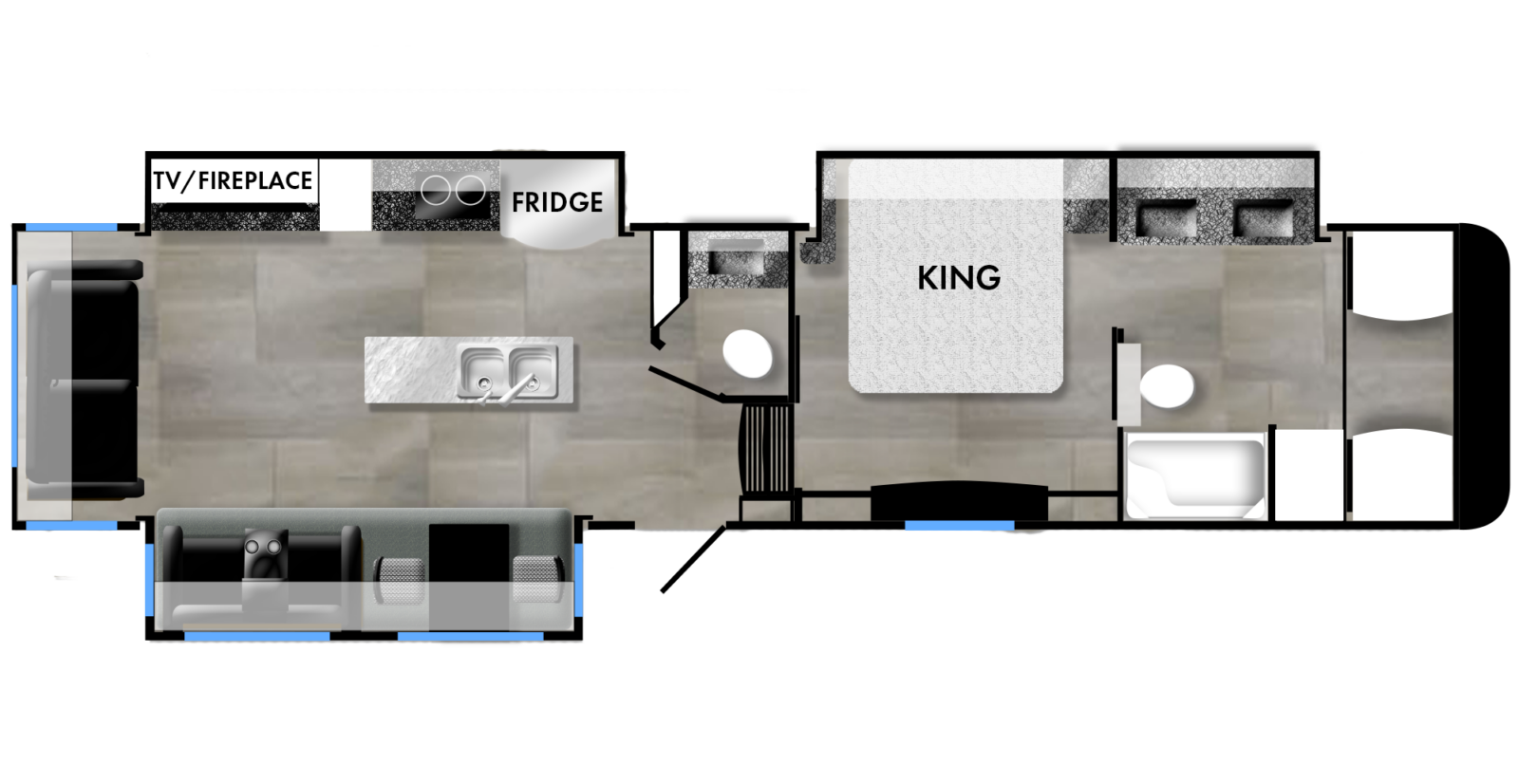

Specification	Aurum 38FB	Paradigm 370FB	Luxe Elite 38GFB	Pinnacle 36FBTS	Model R 3710
	2027 · Prototype · Rear living · front bath	2027 · Front bath	Current · Front bath	2026 · Front bath	2027 · Pre-production · Front living

Price	TBA	$143,192 MSRP	$227,545 builder base	$128,118 MSRP	TBA
Length	41′ 2″	40′ 4″	39′ 9″	40′ 10″	41′ 4″
Empty weight	20,010 lb	14,908 lb	15,900 lb	14,255 lb	18,750 lb
Maximum weight	24,000 lb (prototype)	18,000 lb	21,000 lb	17,500 lb	23,500 lb
Cargo allowance	3,990 lb (prototype)	Not published	Not published	3,245 lb	4,750 lb
Slides	Not published	3	5	3	5
Half bath	Yes	Yes	Yes	Yes	No

Not published = the maker has not said. Hover a value for its source.

Explore all specs and filter by features

What matters to you

Price up to$230,000Length up to44′ 0″

No limits set. Every competitor is in.

The facts, unit by unit


41′ 2″	20,010	24,000 (maximum weight)	3,700	3,990	2 (tandem dual rear wheel)	Not published	Included	Not published	Not published
43′ 3″	15,200	18,200	2,960	3,000	2	88% (2 × 8,000 lb)	Road Armor rubberized suspension with 4,000 lb leaf springs standard; MORryde independent suspension (with shocks, 8K axles and disc brakes) optional	Dexter axles with ABS and Nev-R-Adjust brakes standard; 7K or 8K hydraulic disc brake packages optional (ABS N/A with disc)	215/75R17.5 'H' (17.5 in. 16-ply H-rated) with SpartanLync TPMS
39′ 9″	15,900 (estimated UVW)	21,000	3,800 (estimated)	Not published	2	76% (2 × 8,000 lb)	Independent suspension standard: MORryde IS on Elite, Dexter Torflex on Gold (Luxe files the 38GFB under Gold but sells it as Elite); Kelderman Air Ride optional	Heavy duty hydraulic automotive disc brakes	17.5″ H-rated nitro-filled tires with aluminum wheels and TST TPMS
43′ 8″	17,015	19,500	3,610	2,485	2	82% (2 × 8,000 lb)	Included	Hydraulic disc brakes standard	ST215/75R17.5 'H' (17.5 in. 16-ply H-rated) with Spartan Lync TPMS
43′ 10″	17,085	Not published	3,405	2,320	Not published	Not published	Curt TCS Touring Coil Spring suspension with Helux pin box (standard); MORryde Independent Suspension optional	Curt ABS anti-lock braking system (disc vs drum not stated)	215/75R17.5H on 17.5″ wheels, H-rated
40′ 4″	14,908	18,000	2,664	Not published	2	89% (2 × 8,000 lb)	CURT Touring Coil Suspension (TCS) standard; MORryde 8K independent suspension optional	Self-adjusting brakes with ABS standard; hydraulic disc brakes with the MORryde option	H
40′ 10″	14,255	17,500	2,535	3,245	2	Not published	MORryde LRE-4000 rubberized suspension with wet-bolt shackles standard; MORryde independent suspension optional	Dexter axles with ABS and Tow Assist, Nev-R-Adjust brakes standard; hydraulic disc brakes optional (ABS N/A with disc)	H
42′ 8″	16,121	18,950	2,950	2,829	2	84% (2 × 8,000 lb)	CURT TCS Suspension System standard; MORryde Independent Suspension optional	Hydraulic disc brakes optional (Legacy or Onyx package); standard brake type not published	17.5" H-rated tires with aluminum rims
41′ 8″	15,700	19,000	3,290	Not published	2	84% (2 × 8,000 lb)	MORryde Independent Suspension System standard	Not published	H
41'4"	18,750	23,500	3,450	4,750	2	85% (2 × 10,000 lb)	Included	Disc	J

Alliance

Alliance Aurum 38FB

2027 · Prototype

Price: To be announced
Length: 41′ 2″
Empty weight: 20,010 lb; Maximum (prototype) 24,000 lb
Cargo allowance: 3,990 lb; Dry hitch 3,700 lb
Fresh water: 98 gal; 106 grey · 106 black
Half bath: Yes; 3 A/C

Included as delivered (8 of 20)

Half bath
Residential fridge
Main TV
Theater seating
Sleeper sofa
King bed
3 air conditioners
Independent suspension

Optional, prep or shown

Dishwasher · Shown
Washer / dryer · Shown

Specifications, with sources

Size & weight

Length: 41′ 2″Alliance RV
Dry weight: 20,010 lbAlliance RV
Hitch weight: 3,700 lbAlliance RV
Maximum weight: 24,000 lbPrototype figure, subject to change · Prototype figure, not a published GVWR
Cargo capacity: 3,990 lbPrototype figure, subject to change
Width: 8′ 5″Prototype figure, subject to change
Height: 13′ 5″Prototype figure, subject to change

Tanks

Fresh water: 98 galAlliance RV
Gray water: 106 galAlliance RV · Prototype: two 53-gal tanks
Black water: 106 galAlliance RV · Prototype: two 53-gal tanks
Propane: Four 20-lb tanks, 80 lb totalAlliance RV

Layout

Floorplan: Bath and a half, rear living, front bathAlliance floorplan drawing
Bed: King, queen optionAlliance floorplan drawing
Shower: 37 × 37 in, tile-styleAlliance floorplan drawing; Alliance RV
Main TV: Swivel-mounted 50 in with fireplaceAlliance floorplan drawing
Bedroom TV: 32 inAlliance floorplan drawing
Seating: Leather sleeper sofa and theater seatsAlliance RV; Alliance floorplan drawing

Kitchen & laundry

Refrigerator: 23 cu ft 12-volt residentialAlliance floorplan drawing
Dishwasher: Island dishwasherAlliance floorplan drawing · Standard status not confirmed
Washer / dryer: Washer and dryerAlliance floorplan drawing · Standard status not confirmed
Countertops: Solid surfaceAlliance RV
Cabinetry: All hardwood, dovetailed white birch drawersAlliance RV

Construction

Chassis: FORTIS integrated chassisAlliance RV
Sidewalls: 3½ inAlliance RV
Roof: Spray-on roof systemAlliance RV
Rear cap: FiberglassAlliance RV
Slide fascia: Flush-mount interior and exteriorAlliance RV

Running gear

Suspension: Tandem dual rear wheel independentAlliance RV
Brakes: Not publishedNot verified
Tires: Not publishedNot verified

Climate & power

Furnaces: DualAlliance RV
Air conditioning: Triple A/CAlliance RV · Prototype: heat pumps on each, optional fourth unit
Windows: True residentialAlliance RV · No glazing or R-value published
Solar / inverter / battery: Not publishedNot verified

Storage & utility

Exterior storage: Chassis-side storage, unobstructed pass-through, pull-out trayAlliance RV
Utility: Pull-out toolbox, pull-out fresh water hose, power cord reel, residential water manifoldAlliance RV
